Storm Window Sizing Examples: A Definitive Guide to Precision Measurement

The transition from a theoretical energy-saving strategy to a physical installation begins and ends with dimensional accuracy. In the realm of building science, the secondary glazing unit—commonly referred to as a storm window—must function as a precision-engineered gasket for an often imprecise, aging aperture. The margin for error in these assemblies is remarkably slim; a discrepancy of a quarter-inch can be the difference between a high-performance thermal barrier and a rattling, aesthetic liability that facilitates moisture bypass.

To master the installation of secondary glazing, one must move beyond the superficial “width times height” calculation. True proficiency requires an understanding of structural movement, the specific geometries of historic versus modern framing, and the way light interacts with overlapping meeting rails.

This article serves as a deep-dive reference for professionals and homeowners alike who seek to bridge the gap between architectural preservation and thermal performance. We will examine the mathematical rigor required to translate a “rough opening” into a “finished unit size,” accounting for the physical realities of sagging sills, racked frames, and the mechanical requirements of operable sashes. By synthesizing engineering principles with practical field observations, we aim to establish a definitive framework for fenestration retrofitting.

Storm window sizing examples

Understanding storm window sizing examples requires more than a simple list of numbers; it demands an appreciation for the “tolerance stack-up” that occurs in residential construction. A standard example involves the “Blind Stop” installation, where the storm window sits inside the outer casing. If a primary window measures $32 \frac{1}{8}$ inches at the top but $31 \frac{7}{8}$ inches at the bottom due to house settling, the sizing strategy must choose between an “undersized” unit that relies on heavy caulking or a “custom-tapered” frame that mirrors the irregularity.

Oversimplification in this field often leads to the “smallest dimension rule,” where the installer takes the minimum width and height found and orders a rectangular unit based on those figures. While this ensures the window will fit into the hole, it creates significant “perimeter gaps” that compromise the very air seal the window was intended to provide. Sophisticated examples of sizing account for the “reveal”—the amount of original wood trim left visible—balancing the desire for a tight air seal with the aesthetic necessity of maintaining the building’s original profile.

Furthermore, the vertical placement of the meeting rail (the horizontal bar where the two sashes of a double-hung window meet) is the most visible failure point in sizing. A storm window that is perfectly sized for the outer frame but has a meeting rail offset by two inches from the primary window’s meeting rail is an aesthetic failure. Professional examples must therefore include a “B-measurement” or “H-2 measurement” to ensure the horizontal lines of the old and new windows achieve perfect optical alignment.

Deep Contextual Background

The history of window sizing is a progression from site-built craftsmanship to industrial standardization, and finally back to high-precision customization. In the 18th and 19th centuries, windows were bespoke; no two openings in a house were identical. Storm windows of this era were “hung” windows—simple wooden frames planed by hand to fit a specific, unique opening. This allowed for an incredibly tight fit but required immense labor.

The post-WWII housing boom introduced the “Triple-Track” aluminum storm window. To make mass production viable, manufacturers created “standard sizes” (e.g., 28″x54″, 32″x62″) and used “expander” channels—U-shaped pieces of aluminum at the bottom and sides—that could be slid out to bridge the gap between the standard unit and an irregular opening. While this revolutionized the speed of weatherization, it introduced the “clunky” aesthetic that many preservationists still associate with storm windows today.

Modern sizing has entered the “digital bespoke” era. Laser scanning and CNC (Computer Numerical Control) manufacturing allow for the creation of aluminum and composite frames that are accurate to within 1/16th of an inch, even for arched or “eyebrow” window shapes. This allows for the elimination of the unsightly expander channels, returning us to the clean lines of the 19th-century hand-planed window but with 21st-century material durability.

Conceptual Frameworks and Mental Models

To approach sizing with the rigor of an editor or engineer, consider these three frameworks:

• The “Tightest Restriction” Model: Identify the absolute narrowest point created by hardware, hinges, or warped trim. The storm window must pass this point during installation. If the narrowest point is in the middle of the frame (a “bowed” jamb), the window must be sized for that center point, not the top or bottom.

• The Thermal Bridge Gap: A mental model that views the space between the primary and storm window as a pressurized air chamber. If the sizing is too tight, there is no room for the thermal expansion of the materials, which can lead to glass breakage or “binding.” If it is too loose, the convective loop inside the gap increases, reducing the R-value.

• The Visual Overlap Hierarchy: This prioritizes the alignment of the storm window’s frame with the primary window’s “blind stop” or “brickmould.” The goal is to hide the new frame behind the existing architectural shadows, making the sizing dependent on the depth of the casing, not just the width.

Key Categories and Variations

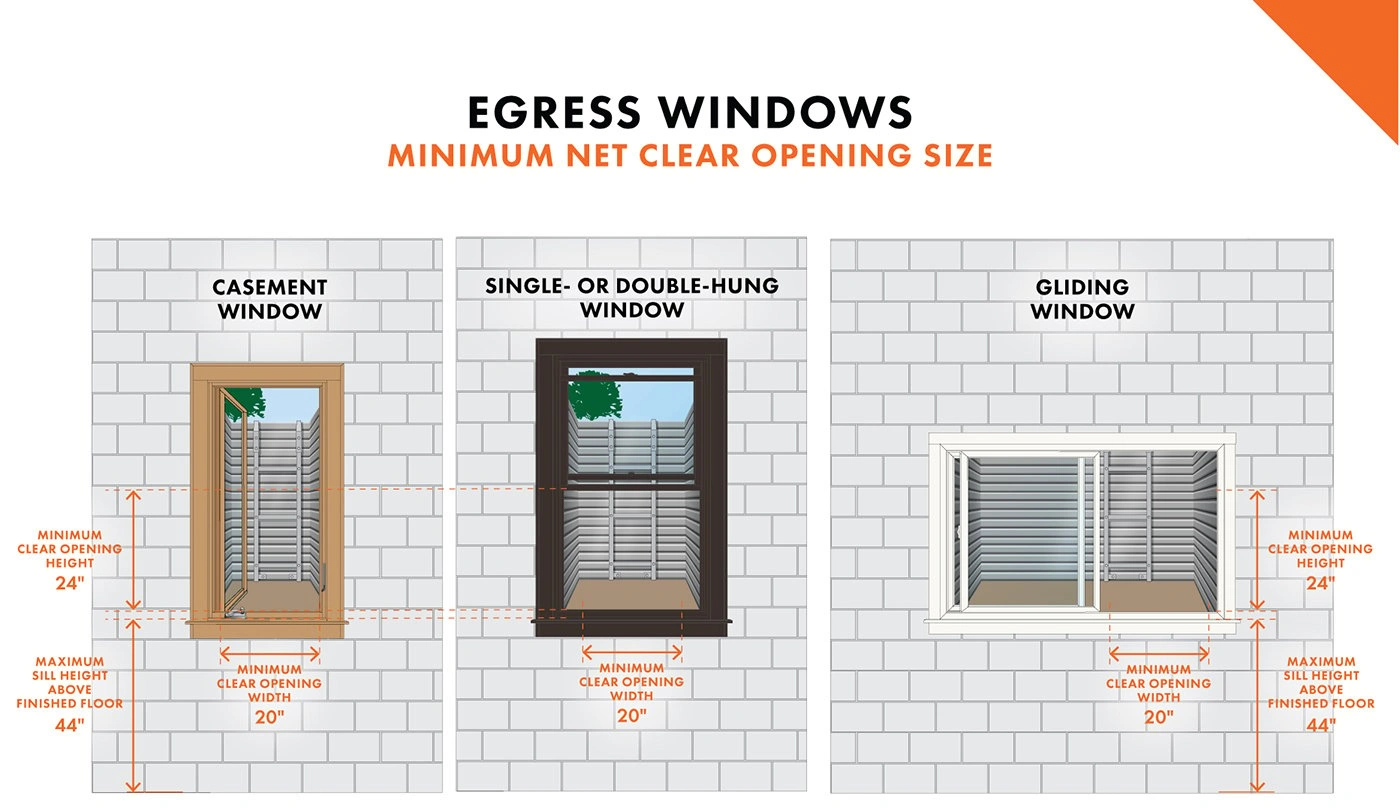

Sizing strategies differ based on the mounting method. The following table highlights the dimensional trade-offs inherent in each.

When a window is “racked” (tilted to one side), the professional chooses between two paths:

1. Rectangular Order: Ordering a square window and using “panning” or “trim-wrap” to hide the triangular gaps at the edges.

2. Out-of-Square Order: Providing the manufacturer with the “diagonal” measurements ($D_1$ and $D_2$). If $D_1 \neq D_2$, a custom-angled frame is produced.

Detailed Real-World Scenarios

Scenario 1: The Sagging Victorian Sill

A 120-year-old house has a window where the sill has rotted and settled, creating a “smile” or U-shaped curve.

• Constraint: A straight storm window bottom will leave a half-inch gap in the center.

• Sizing Step: Measure the height at both jambs and the center. Order the window for the maximum height and use a “variable-pitch expander” or a custom-scribed wood sill-piece to fill the curve.

Scenario 2: The Steel Casement Out-Swing

A 1940s apartment has steel windows that swing outward.

• Constraint: An exterior storm window would prevent the primary window from opening.

• Sizing Step: Move to an interior “compression-fit” sizing. Measure the inside of the steel frame. Subtract 1/16″ to allow for the thickness of the magnetic or rubber gasket.

Scenario 3: The “Deep-Set” Masonry Opening

A stone house has windows recessed 8 inches into the wall.

• Constraint: There is no wood “blind stop” to screw into.

• Sizing Step: Measure the masonry-to-masonry distance. Sizing must account for “expansion anchors” or a secondary wood buck frame. The storm window is sized to fit the buck, not the stone.

Planning, Cost, and Resource Dynamics

The “cost of measurement” is an often-overlooked variable. A standard rectangular window might cost $200, but a custom-angled unit for a racked frame might cost $450.

To achieve the level of accuracy seen in professional storm window sizing examples, the following toolkit is required:

1. Digital Inclinometer: To measure the exact slope of the sill (crucial for “sill-angle” matching).

2. Calibrated “Spread” Bars: Telescoping poles that lock into place, allowing you to measure the width at the top and bottom simultaneously to check for “parallelogram” shapes.

3. Mylar Templates: For arched windows, nothing replaces a physical 1:1 tracing of the opening.

4. Feeler Gauges: To determine the gap between the primary sash and the blind stop—this dictates the maximum thickness of the storm window frame.

5. The “Three-Point” Check: Always measure width at top, middle, and bottom; height at left, middle, and right.

6. Shims and “Backer Rod”: Dimensional planning must include space for these installation aids.

Risk Landscape and Failure Modes

If the sizing is flawed, the consequences compound:

• The “Whistle” Effect: A window sized 1/4″ too small creates a high-velocity air gap that produces audible noise during wind events.

• Binding: On a hot day, an aluminum storm window can expand significantly. If sized too tightly to the wood casing, the frame will bow inward, potentially shattering the glass.

• Meeting Rail Misalignment: As noted, this is the #1 aesthetic failure. It occurs when the installer measures from the bottom of the window but forgets that the storm window sits on a “sloped” sill, raising its relative height.

Measurement, Tracking, and Evaluation

A rigorous sizing project requires documentation to avoid “finger-pointing” if a unit doesn’t fit.

1. Measurement Log: A spreadsheet recording $W_1, W_2, W_3$ and $H_1, H_2, H_3$ for every aperture.

2. The “Squareness” Ratio: Calculating the difference between diagonals. Any difference over 1/2 inch requires a “Template” or “Out-of-Square” surcharge.

3. Photographic Proof: Taking a photo of the tape measure held against the opening for every critical dimension.

Common Misconceptions

• Myth: “You always measure the glass.” Reality: You measure the opening. The glass size is determined by the manufacturer based on your frame measurements.

• Myth: “One-size-fits-all expanders solve all problems.” Reality: Expanders are for small gaps (up to 1/2″). They cannot fix a window that is fundamentally the wrong size for the opening.

• Myth: “New houses don’t need custom sizing.” Reality: Modern “production” homes often have more “racked” or “out-of-plumb” windows than 19th-century homes due to rapid framing and wood shrinkage.

Conclusion

The science of storm window sizing examples is a discipline of patience. It is the bridge between the fluid, shifting nature of a building and the rigid, high-performance requirements of modern glass. By adopting a “measure thrice, manufacture once” mentality and accounting for the structural idiosyncrasies of each unique opening, the practitioner ensures that the secondary glazing remains a silent, invisible partner in the building’s thermal strategy. In the final analysis, the quality of the sizing determines the longevity of the installation and the preservation of the architectural narrative.
